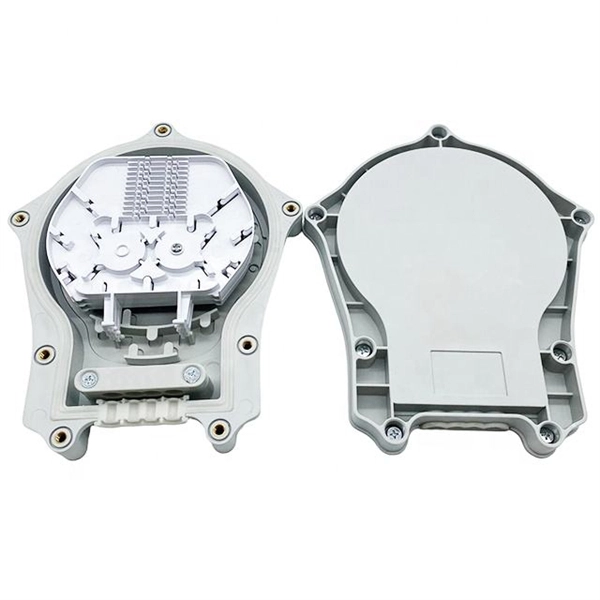

How to use the 3M2524 fiber optic splice closure

Guide to Fiber Optic Splice Closure: Importance, Types

In this article, we will explore the various aspects of fiber optic splice closure, including its importance, types, components, splicing techniques, testing, maintenance, and future trends.

3M FIBRLOK 2525 INSTRUCTIONS MANUAL Pdf Download

The 2524 Splice Tray fits and mounts into the 3M 2177 Fiber Optic Splice Closure, the 3M 2178 Fiber Optic Splice Case and the 3M 2190 PST Fiber Optic Splice Closure.

Fiber Optic Splice Closures

Care should be taken when arranging fibers and splices in splice trays and buffer tubes in the splice closure to ensure all fibers are safely stored. Closures usually have spaces to secure buffer tubes

How to Use Fiber Optic Splice Closures for Maximum

Inside each Fiber Optic Splice Closure, there are splice trays. These trays help you keep fiber splices neat and safe. You tie down the cables so the

3M Fibrlok 2525, Fibrlok 2590, Fibrlok 2599 Instructions | Manualzz

This document provides instructions on how to use the 3M Fibrlok Optical Fiber Splicing System to create permanent mechanical splices for single or multimode fiber.

78-8135-5475-1 Fibrlok 2524 SOT

If 900 micron fiber is being spliced to 250 micron fiber, place the 900 micron fiber into the tray before placing splice in position. This removes torsional load from the 900 micron fiber.

Fi b rl o k 2524 Splice Orga n i z er Tray

Easy maintenance, easy access ns a four-inch bend diameter in the fiber. When splices are installed according to the practice, fibers are spread out during spl cing to allow access to individual fibers.

2524-CE Fiber Splice Tray Manual

3.1 Cross the transportation tube on the bare fiber which should be clean before. 3.2 Guide the fiber to the tray and fix the transportation tube on the edge of the tray ( Picture 1). 3.3 Finish the splice and
