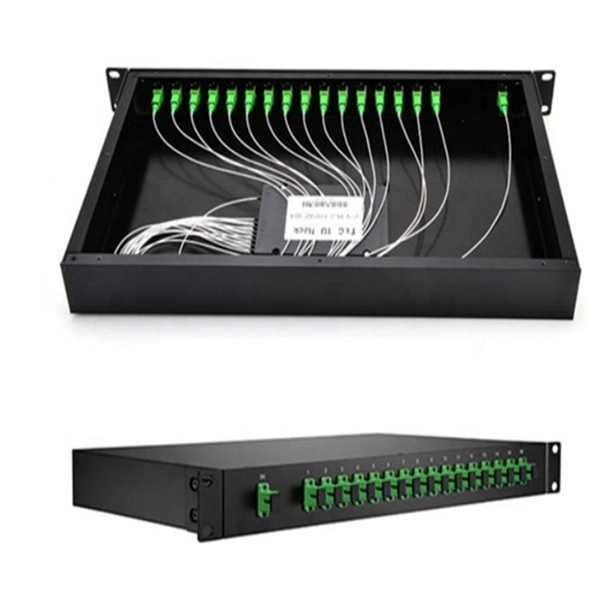

Maximum Attenuation of 116 Optical Splitter
Fiber Optic Calculator
Splitter loss values are "Typical" and include a connector in and out. These values are approximate and should not be exceeded by more than 1-1.5 dB, which could indicate dirty connectors, bad splices, or
Basic Knowledge about Split Ratio and Insertion Loss of Optical Splitter
Excess loss is the ratio of the optical power launched at the input port of the splitter to the total optical power measured from all output ports. It assures that the total output is never as high as
Optical Splitter Insertion Loss Table
The document contains tables listing the insertion loss in dBm for various splitting ratios of an optical splitter, ranging from 1% to 99%. It also includes formulas for calculating insertion loss based on the
Fiber Optic Splitter Loss Calculator
Fiber Optic Splitter Loss Calculator Estimate split loss, fiber attenuation, and budget margin for FTTH trees, passive taps, and home lab optical branches.
Understanding Optical Splitter Loss
Understanding splitter ratios and insertion loss is fundamental to building a reliable fibre optic network. The key takeaway is that every split reduces optical power, and this loss must be
Calculate the Maximum Attenuation for Optical Fiber Links
This document describes how to calculate the maximum attenuation for an optical fiber. You can apply this methodology to all types of optical fibers in order to estimate the maximum
Fiber Optic Loss Calculator
Estimate fiber attenuation, connector loss, splice loss, and budget margin for links. Compare wavelengths, distances, safety reserves, receiver limits, and operating headroom accurately.
How to Calculate Splitter Loss in Optical Fiber
One of the most valuable uses of optical splitters is to determine splitter loss. This loss occurs because the signal level decreases as the signal is divided into two or more outputs.
Fiber Link Loss Budget Calculator
However, Corning Optical Communications assumes no liability for damages that may arise from using these calculations in telecommunications system design. This calculator should be used as a tool in
PON crib: splitters, ratios, gains, losses
Here''s a table with calculated attenuations for even fiber optic splitters with 2 or more outputs. If you don''t have this table at hand, use this primitive formula to calculate the maximum
